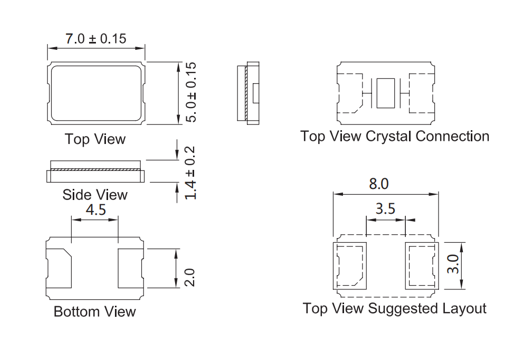

SMD7050 7.0X5.0X1.3MM

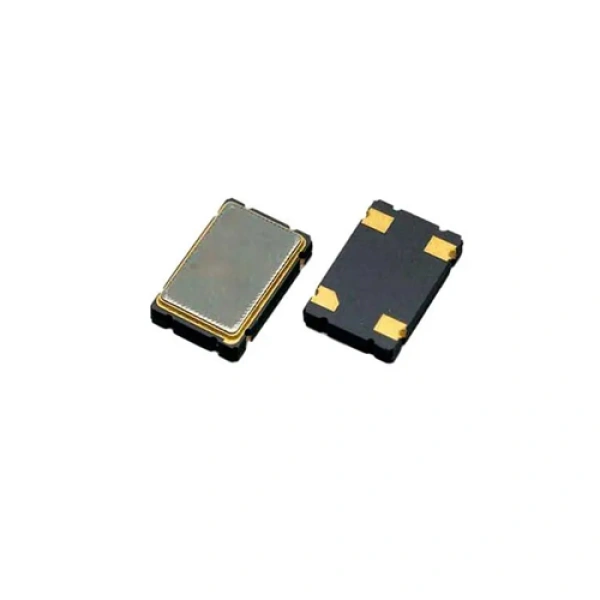

Small SMD seam sealed clock crystal oscillator package
Tri-State function
TTL/HCMOS compatible
Supply vpltage range:1.8v-5v.
High stability,lowjitter,low power comsuption
Tape and Reel
Main application:wireless communication set,PDA,and DSC
RoHS Compliant and Pb Free

Electrical Specifications

Type

Specifications

Frequency Range

32.768KHz~150.0MHz

Output Type

CMOS/TTL

Oscillation Mode

Fundamental/3rd Overtone

Supply Voltage

1.8V 2.5V

2.8V 3.3V 5V

Output Load

15pF, or specify

Frequency Stability

±20ppm;±30ppm

Operating Temperature Range

-20℃ ~ +75℃, -40℃ ~ +85℃

Storage Temperature Range

-55℃ ~ +125℃

Voltage vol(max)/Voh(min)

0.1 VDD/ 0.9VDD

Rise(Tr)/Fall(Tf) Time

8 ns Max.

Supply Current

15 mA Max.

Symmetry

45~55%

Start-up Time

5 ms Max.

Phase Jitter(12KHz~20MHz)

1ps Max.

Aging(Ta=25℃)

±3ppm/Year Max.

Please consult our sales representatives for more information.
