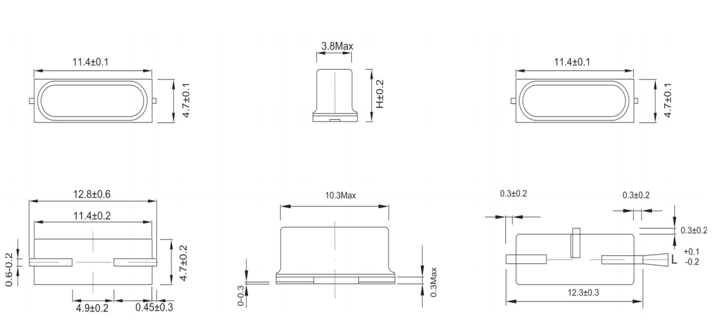

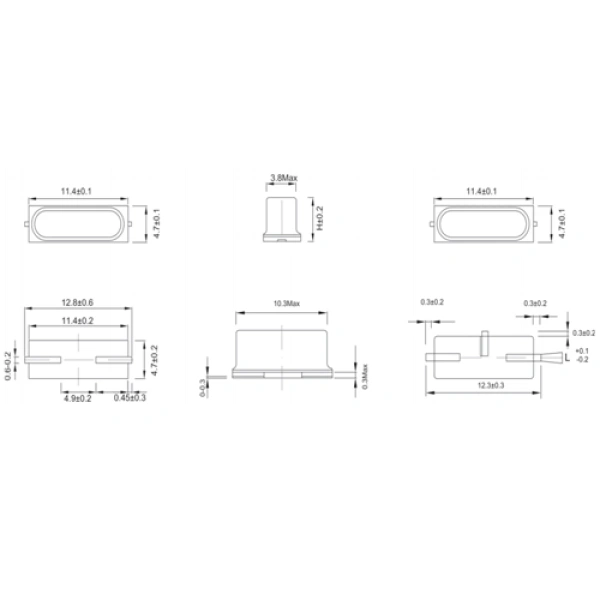

SMD11447 11.4X4.7X3.5MM

High reliability&low cost unit
Tight stability&Extended temperature available
DIP and SMD types available
RoHS Compliant and Pb Free

Electrical Specifications

Type

Symbol

Specifications

Frequency Range

f₀

3.2MHz~60.0MHz

Frequency Tolerance(Ta=25℃)

Δf/f

±20ppm or specify ±10ppm

Frequency stability over operating
Temperature Range

Δf/f

±20ppm or specify ±10ppm

Operating Temperature Range

Δf/f

-20℃ ~ +75℃, -40℃ ~ +85℃

Storage Temperature Range

T_OPR

-40℃ ~ +85℃, -40℃ ~ +125℃

Shunt Capacitance

CL

3pF Max.(2 pF typical )

Drive Level

DL

1-500µW(100µW typical)

Load Capacitance

CL

8pF;10pF;12pF;20pF; or specify

Insulation Resistance

IR

500M^Ω  @ DC100V

Aging(Ta=25℃)

Δf_A

±3ppm/Year Max.

Equivalent Series Resistance

Fundamental

3.2KHz~40.0MHz

40~50^ΩMax

40.0KHz~60.0MHz

40~60^ΩMax

Please consult our sales representatives for more information.
