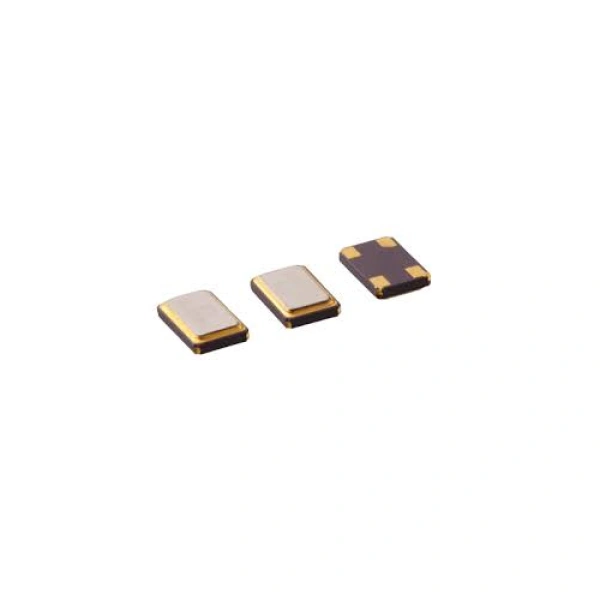

SMD2016 2.0X1.6X0.5MM Passive crystal oscillator

SMD2016 2.0X1.6X0.5MM

2.0X1.6X0.5MM

16.0MHz~60.0MHz

Extremely small SMD type crystal units

High precise and frequency stability

Excellent haet resistance and environmental characteristics

Applications in smart watch, bluetooth, PDA, DSC.PC

RoHS Compliant and Pb Free

sku:Factory direct sell raspberry Pi accessories ,integrated circuit, SMD,DIP,QFN,IGBT module ,LCD.

FEATURES
Extremely small SMD type crystal units High precise and frequency stability Excellent haet resistance and environmental characteristics Applications in smart watch, bluetooth, PDA, DSC.PC RoHS Compliant and Pb Free

Electrical Specifications
Type	Symbol	Specifications
Frequency Range	f₀	16.0MHz~60.0MHz
Frequency Tolerance(Ta=25℃)	Δf/f	±20ppm or specify ±10ppm
Frequency stability over operating Temperature Range	Δf/f	±20ppm or specify ±10ppm
Operating Temperature Range	Δf/f	-20℃ ~ +75℃, -40℃ ~ +85℃
Storage Temperature Range	T_OPR	-40℃ ~ +85℃, -40℃ ~ +125℃
Shunt Capacitance	CL	3pF Max.(2 pF typical )
Drive Level	DL	1-100µW(100µW typical)
Load Capacitance	CL	8pF;10pF;12pF;20pF; or specify
Insulation Resistance	IR	500M^Ω @ DC100V
Aging(Ta=25℃)	Δf_A	±3ppm/Year Max.

Equivalent Series Resistance
Fundamental
16.0KHz~20.0MHz	80^ΩMax
20.0KHz~54.0MHz	60^ΩMax
Please consult our sales representatives for more information.
