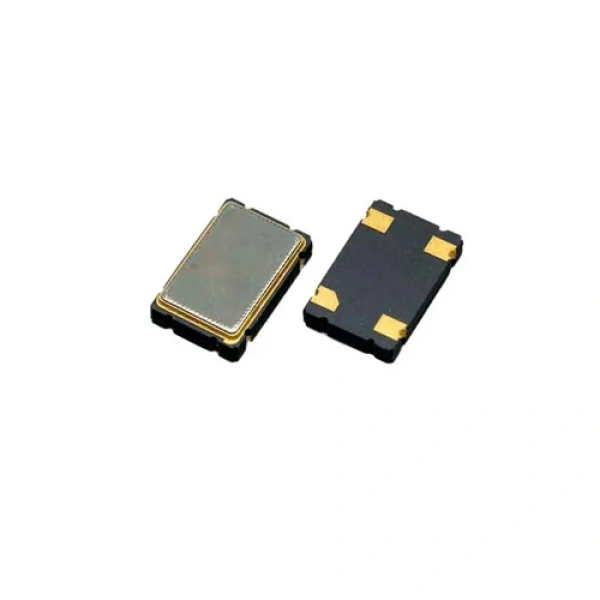

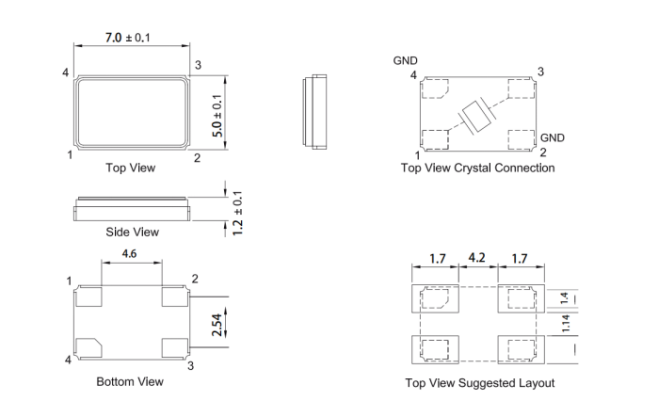

SMD7050 7.0X5.0X1.2MM

Extremely small SMD type crystal units
High precise and frequency stability
Excellent haet resistance and environmental characteristics
Applications in smart watch, bluetooth, PDA, DSC.PC
RoHS Compliant and Pb Free

Electrical Specifications

Type

Symbol

Specifications

Frequency Range

f₀

6.0MHz~60.0MHz

Frequency Tolerance(Ta=25℃)

Δf/f

±20ppm or specify ±10ppm

Frequency stability over operating
Temperature Range

Δf/f

±20ppm or specify ±10ppm

Operating Temperature Range

Δf/f

-20℃ ~ +75℃, -40℃ ~ +85℃

Storage Temperature Range

T_OPR

-40℃ ~ +85℃, -40℃ ~ +125℃

Shunt Capacitance

CL

3pF Max.(2 pF typical )

Drive Level

DL

1-500µW(100µW typical)

Load Capacitance

CL

8pF;10pF;12pF;20pF; or specify

Insulation Resistance

IR

500M^Ω  @ DC100V

Aging(Ta=25℃)

Δf_A

±3ppm/Year Max.

Equivalent Series Resistance

Fundamental

6.0KHz~11.0MHz

100^ΩMax

12.0KHz~30.0MHz

40^ΩMax

30.0KHz~60.0MHz

50^ΩMax

Please consult our sales representatives for more information.
